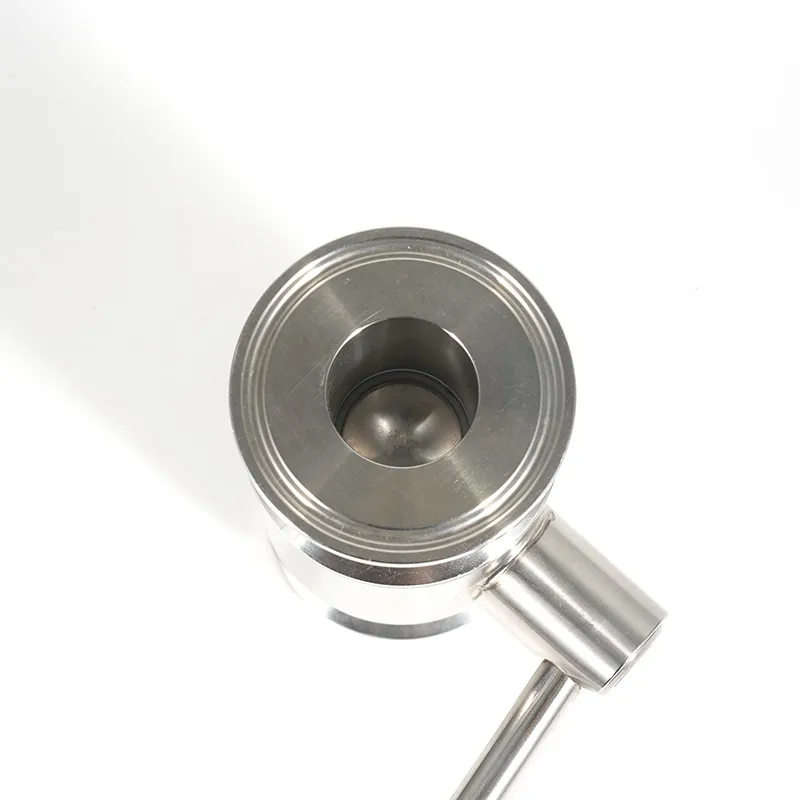

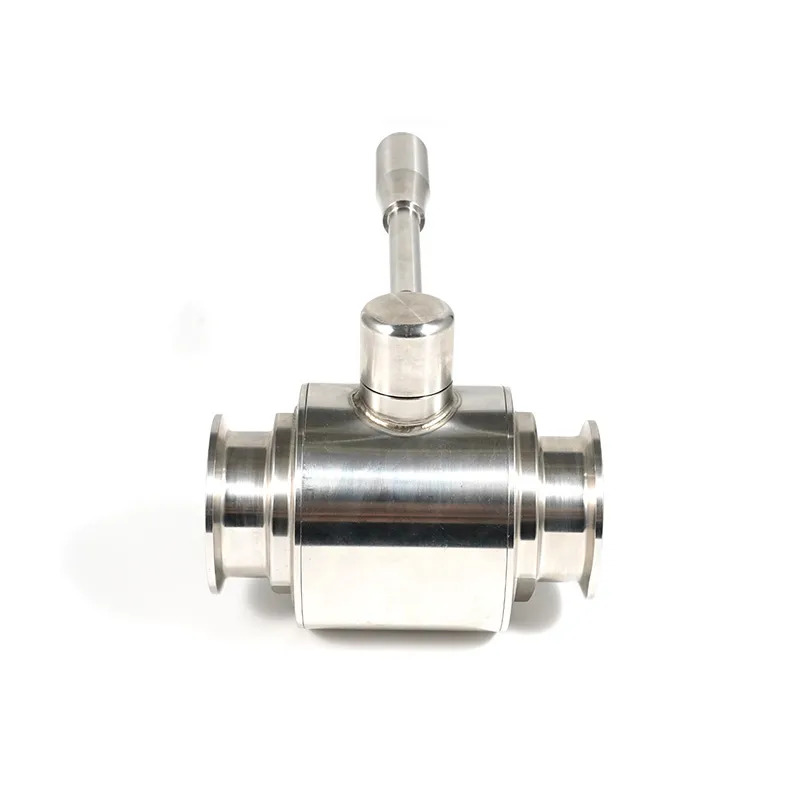

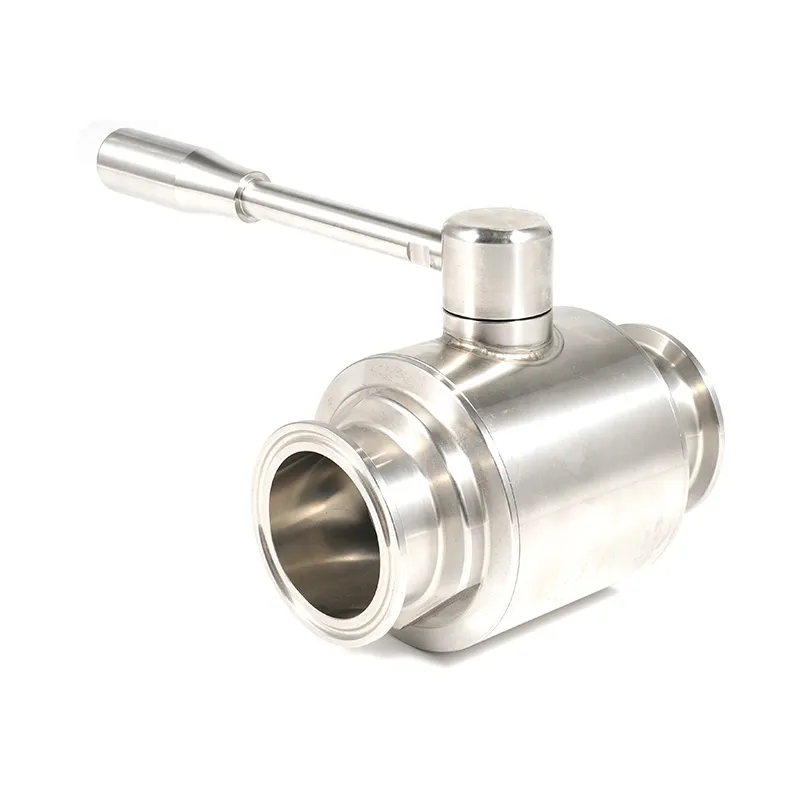

3A/SMS/DIN Sanitary Manual Tri Clamp Encapsulated Direct Way Ball Valve SS304 SS316L Stainless Steel with PTFE Gasket

+ Free Shipping

Design Features

  • Free of maintenance
  • Compact and portable
  • Small operating torque
  • Gasket complies with PTFE FDA 177.2600
  • Handle level can be installed on the side of the valve body,no matter of the flow direction
  • It can be match with pneumatic and electric actuators
  • Valve Type: One piece, Two piece, Three-piece, Butterfly ball type

You can contact our customer service, tell us how many you need and give you a price check.

SKU: N/A Categories: ,

Weld Direct Way Ball Valve

Model No Size D Dn L H H1
VFM01WH1SX51050NN 1/2″ 12.7 9.4 76 103 43.5
VFM01WH1SX51075NN 3/4″ 19.1 15.8 76 103 47.5
VFM01WH1SX51100NN 1″ 25.4 22.1 100 127 57
VFM01WH1SX51150NN 1 1/2″ 38.1 34.8 115 127 64.5
VFM01WH1SX51200NN 2″ 50.8 47.5 134 154 86
VFM01WH1SX51250NN 2 1/2″ 63.5 60.2 155 170 98
VFM01WH1SX51300NN 3″ 76.2 72.9 168 257 146
VFM01WH1SX51400NN 4″ 101.6 97.6 222 257 127
VFM01WH1SX52015NN DN15 18 15 76 87 47.5
VFM01WH1SX52020NN DN20 22 19 76 103 47.5
VFM01WH1SX52025NN DN25 28 25 100 127 57
VFM01WH1SX52040NN DN40 41 38 115 127 64.5
VFM01WH1SX52050NN DN50 52 49 134 154 86
VFM01WH1SX52065NN DN65 70 66 155 170 98
VFM01WH1SX52080NN DN80 85 81 168 257 127
VFM01WH1SX52100NN DN100 104 100 222 257 146

Tri Clamp Direct Way Ball Valve

Model No Size D Dn L H H1
VFM01CH1SX51050NN 1/2″ 25.2 9.4 76 103 43.5
VFM01CH1SX51075NN 3/4″ 25.2 15.8 76 103 47.5
VFM01CH1SX51100NN 1″ 50.5 22.1 100 127 57
VFM01CH1SX51150NN 1 1/2″ 50.5 34.8 115 127 64.5
VFM01CH1SX51200NN 2″ 64 47.5 134 154 86
VFM01CH1SX51250NN 2 1/2″ 77.5 60.2 155 170 98
VFM01CH1SX51300NN 3″ 91 72.9 168 257 146
VFM01CH1SX51400NN 4″ 119 97.6 222 257 127
VFM01CH1SX52015NN DN15 34 15 76 87 47.5
VFM01CH1SX52020NN DN20 34 19 76 103 47.5
VFM01CH1SX52025NN DN25 50.5 25 100 127 57
VFM01CH1SX52040NN DN40 50.5 38 115 127 64.5
VFM01CH1SX52050NN DN50 64 49 134 154 86
VFM01CH1SX52065NN DN65 91 66 155 170 98
VFM01CH1SX52080NN DN80 106 81 168 257 127
VFM01CH1SX52100NN DN100 119 100 222 257 146

DIN Male Thread Direct Way Ball Valve

Model No Size G/RD Dn L H H1
VFM01MH1SX52010NN DN10 RD28*1/8 10 76 103 43.5
VFM01MH1SX52015NN DN15 RD34*1/8 15 76 103 47.5
VFM01MH1SX52020NN DN20 RD44*1/6 19 76 103 47.5
VFM01MH1SX52025NN DN25 RD52*1/6 25 100 127 57
VFM01MH1SX52040NN DN40 RD65*1/6 38 115 127 64.5
VFM01MH1SX52050NN DN50 RD78*1/6 49 134 154 86
VFM01MH1SX52065NN DN65 RD95*1/6 66 155 170 98
VFM01MH1SX52080NN DN80 RD110*1/4 81 168 257 127
VFM01MH1SX52100NN DN100 RD130*1/4 100 222 257 146

SMS Male Thread Direct Way Ball Valve

Model No Size G/RD Dn L H H1
VFM01MH1SX53050NN 1/2″ RD28*1/8 9.4 76 103 43.5
VFM01MH1SX53075NN 3/4″ RD36*1/8 15.8 76 103 47.5
VFM01MH1SX53100NN 1″ RD40*1/6 22.1 100 127 57
VFM01MH1SX53150NN 1 1/2″ RD60*1/6 34.8 115 127 64.5
VFM01MH1SX53200NN 2″ RD70*1/6 47.5 134 154 86
VFM01MH1SX53250NN 2 1/2″ RD85*1/6 60 155 170 98
VFM01MH1SX53300NN 3″ RD98*1/4 72.9 168 257 127
VFM01MH1SX53400NN 4″ RD125*1/4 97.6 222 257 146

Have inquiries about sanitary sensors, pneumatic valves, food‑grade hoses, quotation, bulk orders or custom solutions for brewing & beverage processing? Reach out to us. Our team will respond within 24 working hours (UTC+8).

WhatsApp：+86 15163696638
Email：info@skeflows.com

DN

DN15, DN20, DN25, DN50, DN40, DN32, DN65, DN80, DN100
