Technical Data
Assembly Drawing
 |
Item | Description | Matrtial | QTY |
| 1 | Hexagon Nut | SS304 | 1 | |
| 2 | Flat Ring | SS304 | 1 | |
| 3 | Hand Wheel | POM | 1 | |
| 4 | Bushing | ABS | 1 | |
| 5 | Support | SS304 | 1 | |
| 6 | Shaft | SS304 | 1 | |
| 7 | Bolt | SS304 | 4 | |
| 8 | O-Ring | Silicon* | 1 | |
| 9 | Ball Bearing | SS304 | 1 | |
| 10 | Membrane | PTFE | 1 | |
| 11 | Valve Body | SS304/SS316L | 1 |
Weld Sampling Valve
 |
||||||
| Model No | Size | d | D1 | A | C | L |
| VSC01M1W32652008 | DN8 | 8 | 28 | 25.2 | 5 | 85 |
| VSC01M1W32652010 | DN10 | 9.5 | 28 | 25.2 | 9.5 | 93 |

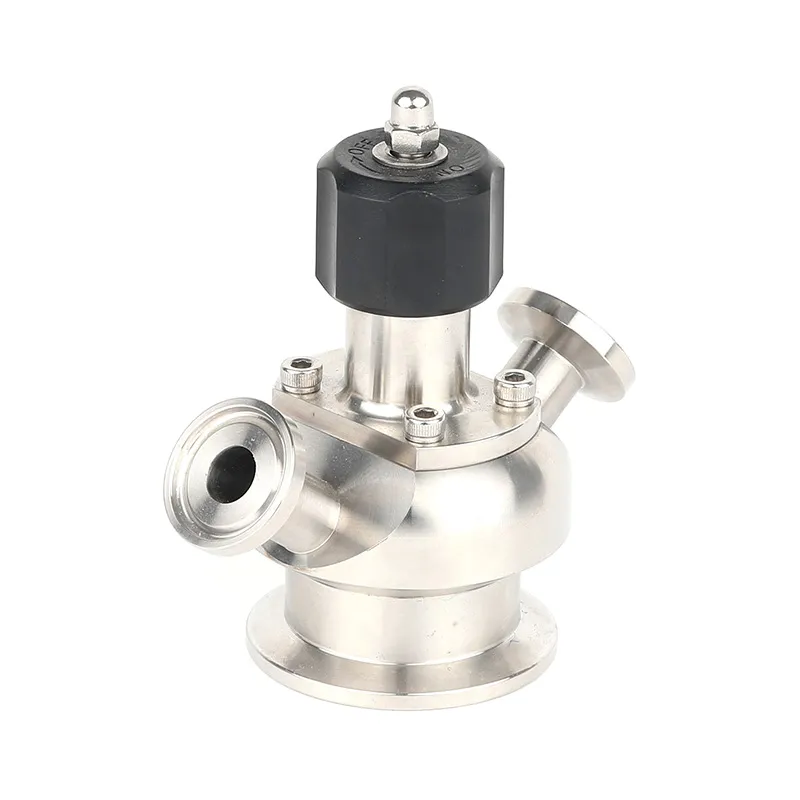

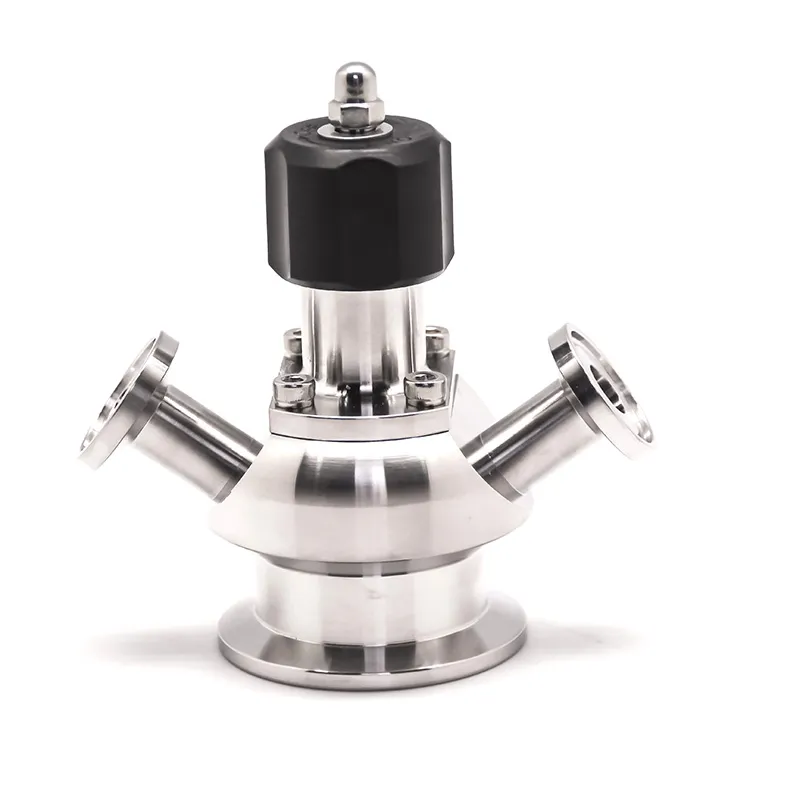

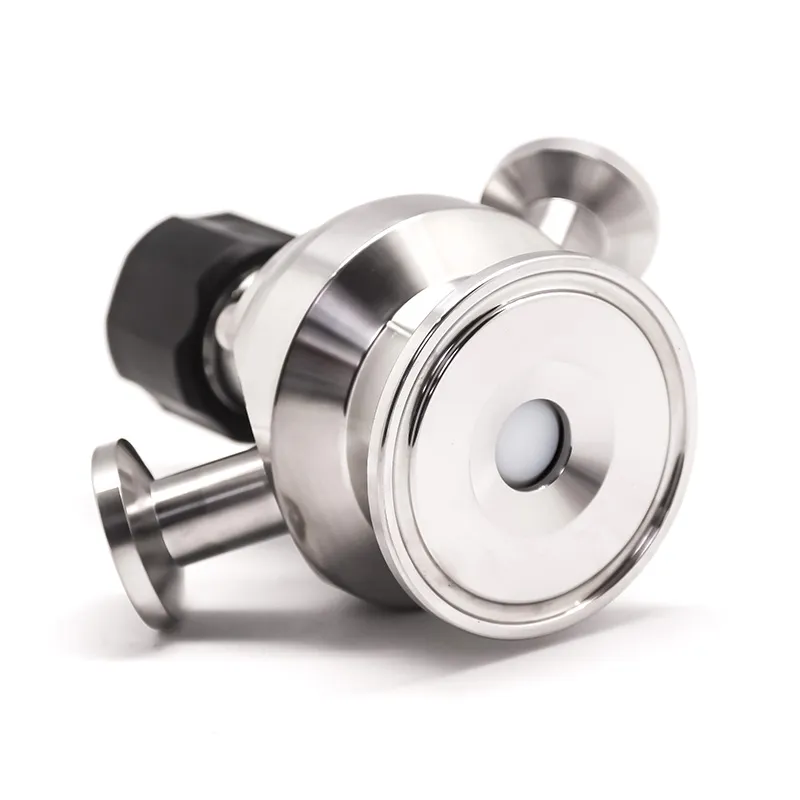

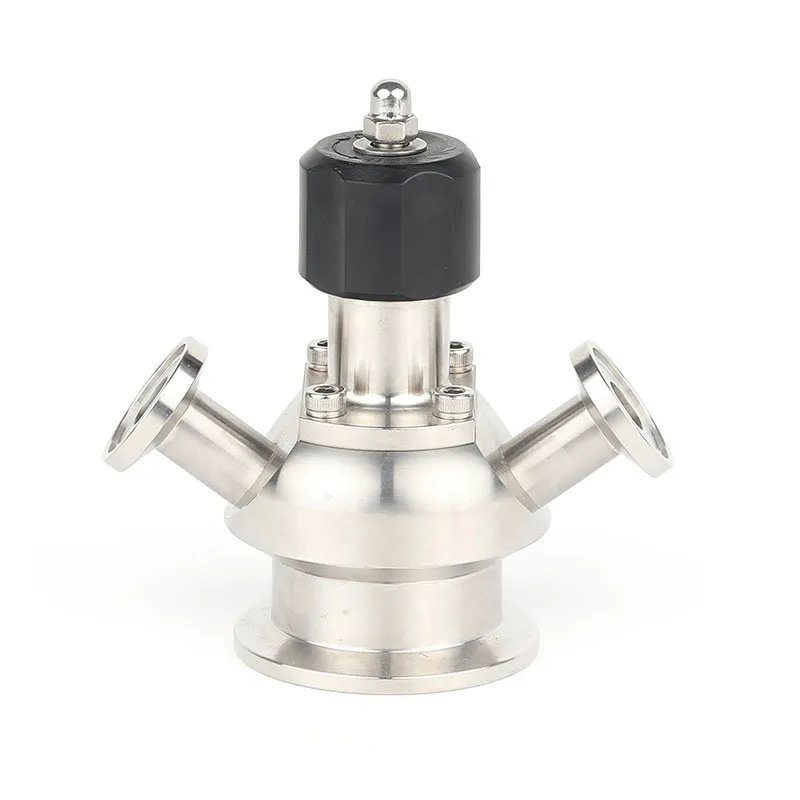

Clamp Sampling Valve
 |
||||||
| Model No | Size | d | K | A | C | L |
| VSC01M1C32652008 | DN8 | 8 | 25.2 | 25.2 | 5 | 85 |
| VSC01M1C32652010 | DN10 | 9.5 | 50.5 | 25.2 | 9.5 | 93 |
