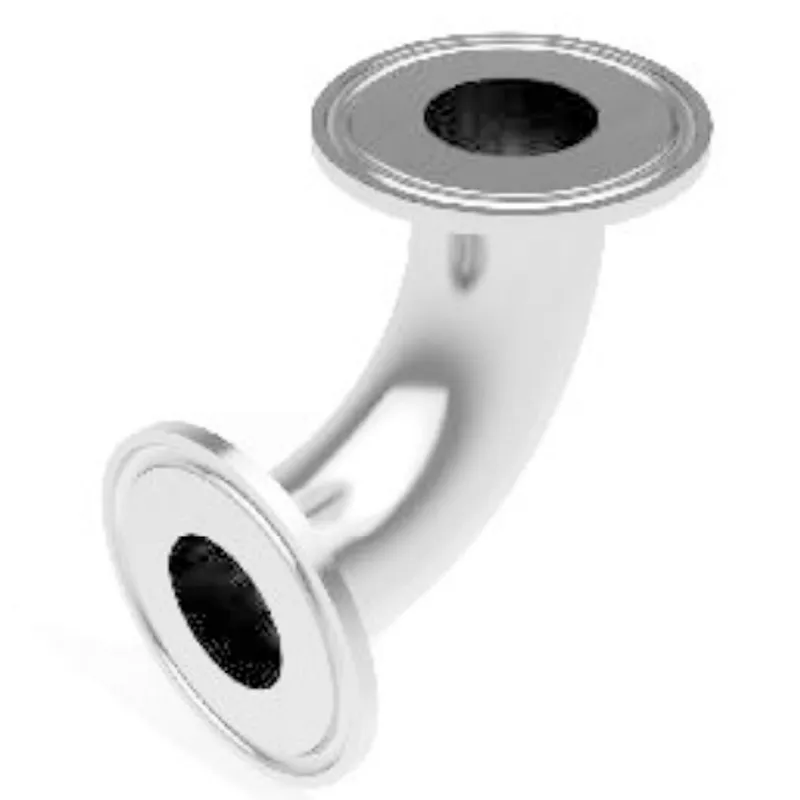

DT-4.1.1-3 90° Clamp Elbow(DT-16) High Quality 1/4"-6" Sanitary SS316L Stainless Steel ASME BPE Fitting Polished
,

DT-4.1.1-3 90° Clamp Elbow(DT-16) High Quality 1/4″-6″ Sanitary SS316L Stainless Steel ASME BPE Fitting Polished

+ Free Shipping

Design And Deatures

– Strict dimensional & wall‑thickness tolerances per ASME BPE tables, ensures precise orbital welding & consistent fitting performance
– Wide size range: 1/4″‑6″, covers most high‑purity process piping requirements
– Smooth crevice‑free internal geometry, validatable for clean‑in‑place & steam‑in‑place sterilization

You can contact our customer service, tell us how many you need and give you a price check.

SKU: N/A Categories: ,

Technical Specification

DT-4.1.1-4 Long Weld 45° Elbow(DT-8)

Model No Size D/mm L/mm T/mm N.W/g.
FEC02B025 1/4″ 6.35 41.28 0.89
FEC02B038 3/8″ 9.53 41.28 0.89
FEC02B050 1/2″ 12.7 41.28 1.65
FEC02B075 3/4″ 19.05 41.28 1.65
FEC02B100 1″ 25.4 50.8 1.65
FEC02B150 11/2″ 38.1 69.85 1.65
FEC02B200 2″ 50.8 88.9 1.65
FEC02B250 21/2″ 63.5 107.95 1.65
FEC02B300 3″ 76.2 127 1.65
FEC02B400 4″ 101.6 168.28 2.11
FEC02B600 6″ 152.4 166.7 2.77

Have inquiries about sanitary sensors, pneumatic valves, food‑grade hoses, quotation, bulk orders or custom solutions for brewing & beverage processing? Reach out to us. Our team will respond within 24 working hours (UTC+8).

WhatsApp：+86 15163696638
Email：info@skeflows.com

Sensor Value

0.5"【316L】, 0.75"【316L】, 1"【316L】, 1.5"【316L】, 2"【316L】, 2.5"【316L】, 3"【316L】, 4"【316L】
