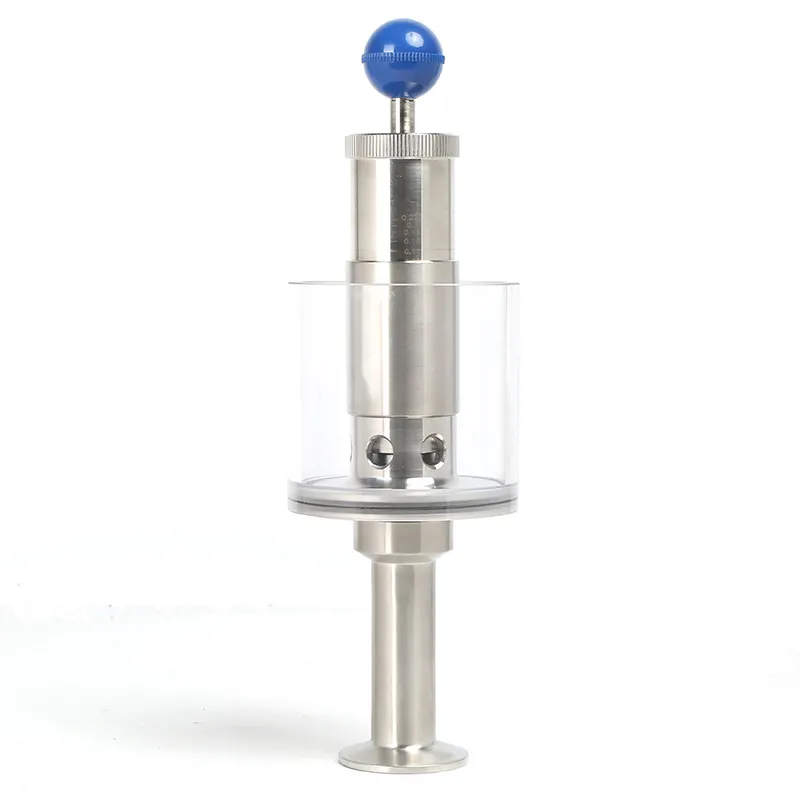

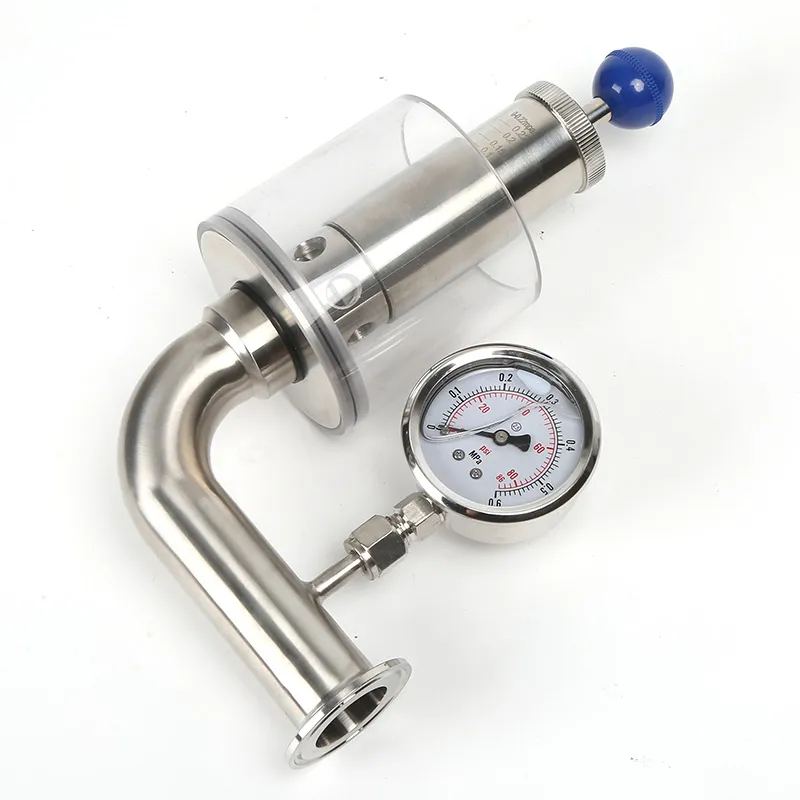

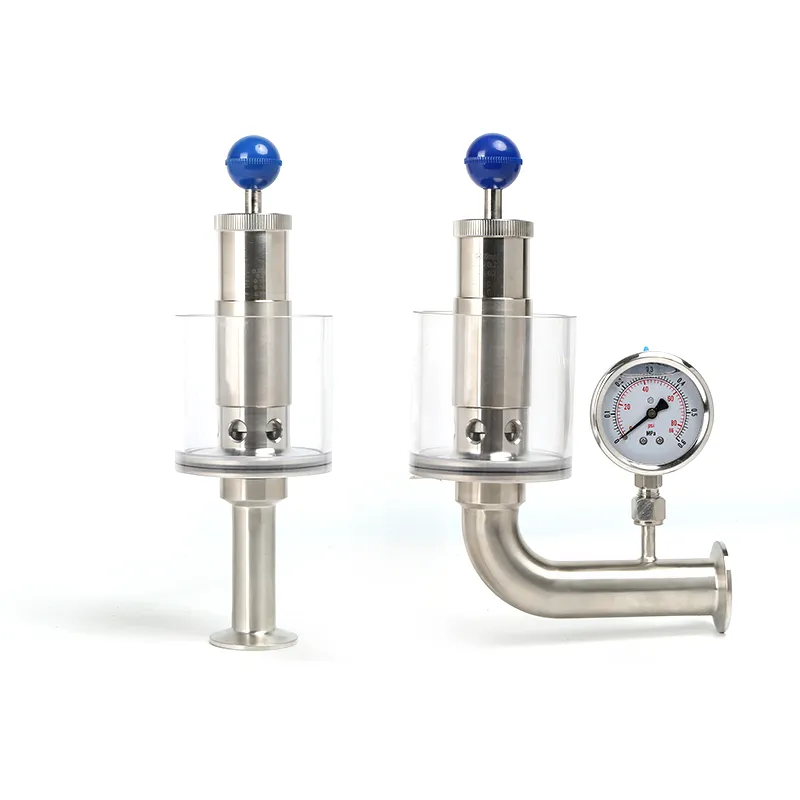

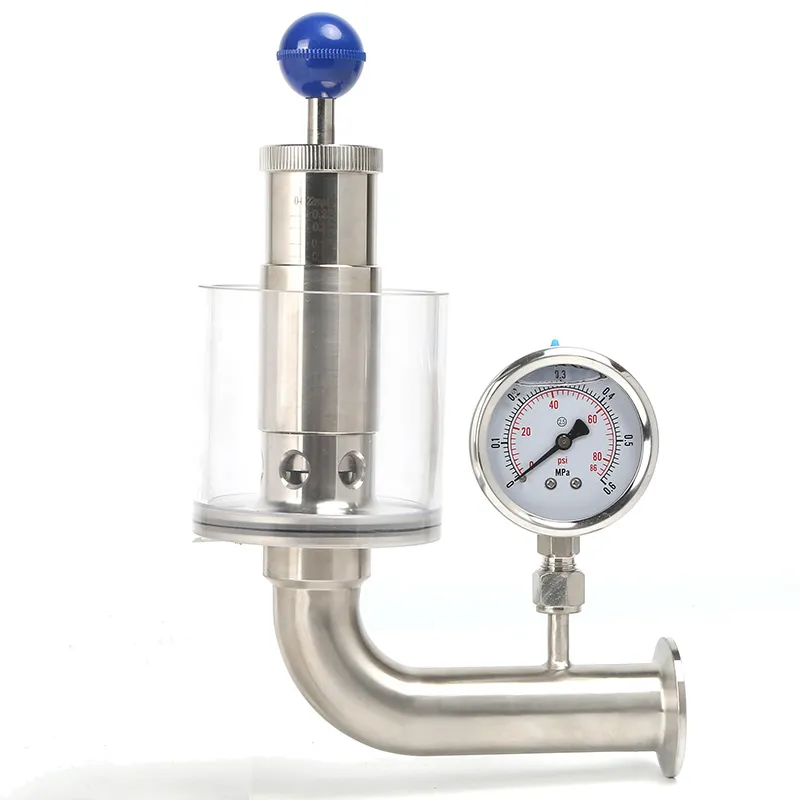

Sanitary Clamp Air Release Valve with Pressure Gauge SS304 Stainless Steel Bunging Pressure Valve

Technical Specification

• Working Pressure: 14.5psi/ 1bar (standard), could be adjustable before production

• Temperature range: medium

  	Item	Name	Matrtial	QTY
  	1	Pull Ball	ABS	1
  	2	Adjustable Nut	SS304	1
  	3	Valve Stem	SS304	1
  	4	Spring	SS304	1
  	5	Glass Cylinder	Organic Glass	1
  	6	Pressure Setting Sleeve	SS304	1
  	7	Valve Pug	SS304/SS316L	1
  	8	Valve Body	SS304/SS316L	1
  	9	Adaptor	SS304/SS316L	1
  	10	Elbow	SS304/SS316L	1
  	11	O-Ring	EPDM	1
  	12	O-Ring	EPDM	1
  	13	O-Ring	EPDM	1
  	14	Connection for Pressure Gauge	SS304/SS316L	1
  	15	Pressure Gauge	SS304	1
  	16	Spring Mat	SS304	1
  	17	Valve Seal	SS304/SS316L	1

  Model No	Size	D	H1	H2	K	d	L
  VAR01C41100	1″	90	230	/	50.5	22.4	168
  VAR01C41125	11/4″	90	230	/	50.5	28.8	168
  VAR01C41150	11/2″	90	230	/	50.5	35.1	168
  VAR01C42025	DN25	90	230	/	50.5	25	168
  VAR01C42032	DN32	90	230	/	50.5	31	168
  VAR01C42040	DN40	90	230	/	50.5	37	168
  VAR02C41100	1″	90	/	251	50.5	22.4	168
  VAR02C41125	11/4″	90	/	251	50.5	28.8	168
  VAR02C41150	11/2″	90	/	251	50.5	35.1	168
  VAR02C42025	DN25	90	/	251	50.5	25	168
  VAR02C42032	DN32	90	/	251	50.5	31	168
  VAR02C42040	DN40	90	/	251	50.5	37	168
