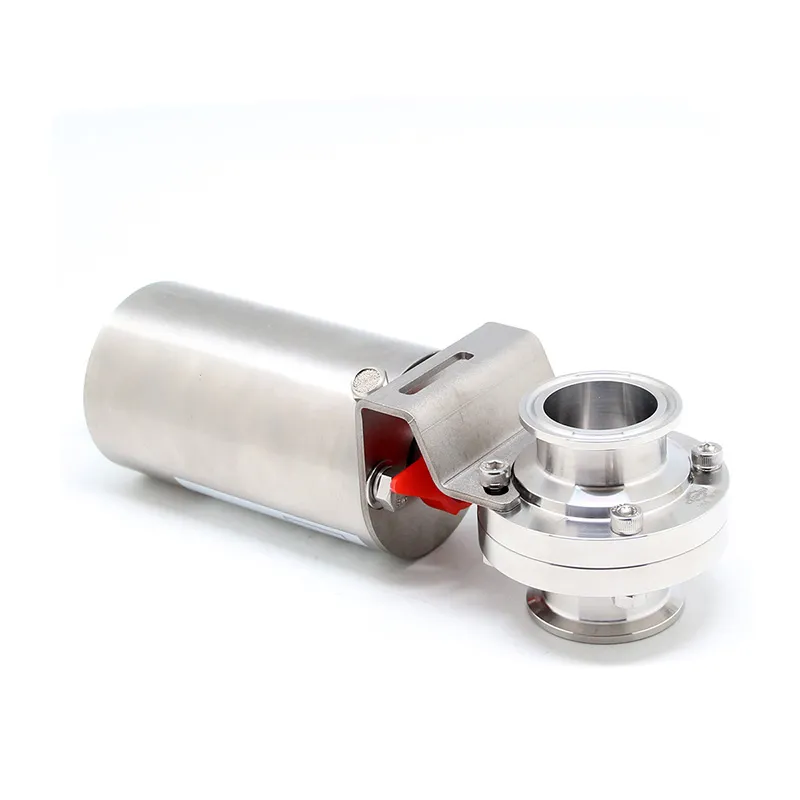

Sanitary Pneumatic Economical Butterfly Valve SS304/SS316L Stainless Steel Weld/Clamp High Quality Pipe Systems for Food

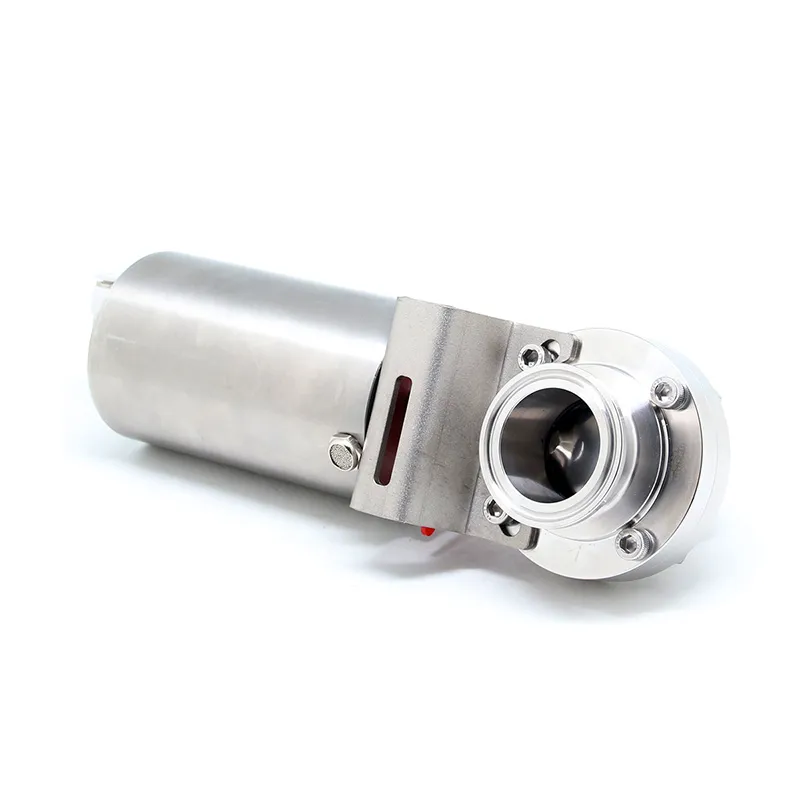

Sanitary Pneumatic Economical Butterfly Valve SS304/SS316L Stainless Steel Weld/Clamp High Quality Pipe Systems for Food - Image 2

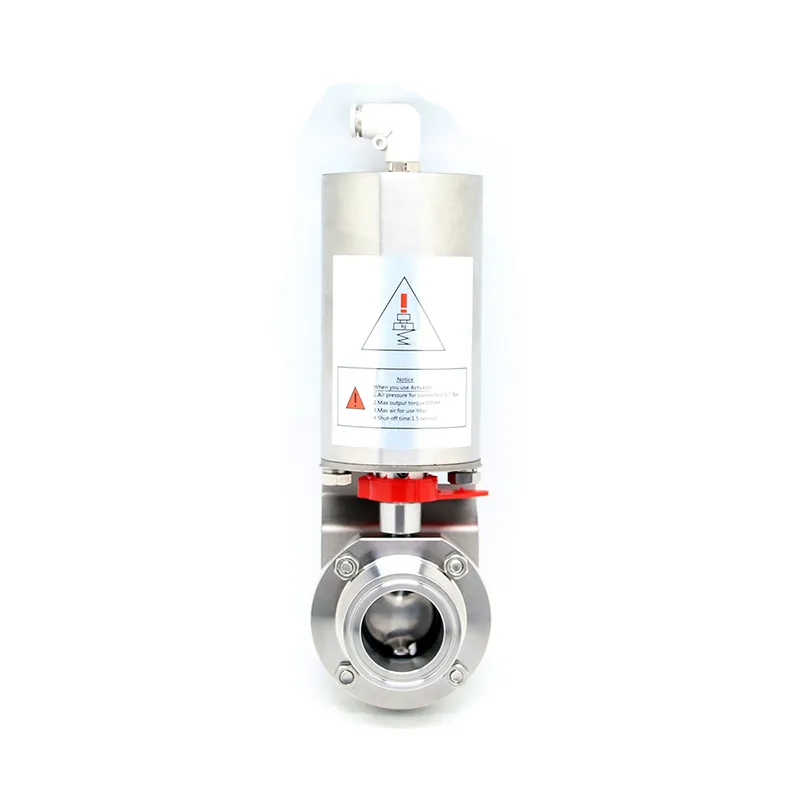

Sanitary Pneumatic Economical Butterfly Valve SS304/SS316L Stainless Steel Weld/Clamp High Quality Pipe Systems for Food - Image 3
,

Sanitary Pneumatic Economical Butterfly Valve SS304/SS316L Stainless Steel Weld/Clamp High Quality Pipe Systems for Food

+ Free Shipping

Standard Design

  • The actuator is made in three standard versions, normally closed (NC), normally open (NO) and air/air activated (A/A).
  • Electronic actuator avaliable in AC.24V, 110V, 220V, 380V or DC. 24V. 50Hz or 60Hz,action time: 9S, 10S, 13S, 15S, 20S, 25S, 30S, 50S, 60S and 100S
  • Manually handle locks the valve in 3 position: Full open, half open and closed.

You can contact our customer service, tell us how many you need and give you a price check.

SKU: N/A Categories: ,

Technical Data

3A Weld Economical Butterfly Valve

Model No Size A B C D E
VBC02WH6XX1075NN 19 16.1 19 52 71.5 127
VBC02WH6XX1100NN 25 22.4 25.4 52 71.5 127
VBC02WH6XX1125NN 32 28.8 31.8 52 71.5 127
VBC02WH6XX1150NN 38 35.1 38.1 52 71.5 127
VBC02WH6XX1175NN 45 42 45 52 74 127
VBC02WH6XX1200NN 51 47.8 50.8 52 79 127
VBC02WH6XX1225NN 57 53 57 56 83 127
VBC02WH6XX1250NN 63 59.5 63.5 56 88.5 137
VBC02WH6XX1300NN 76 72.2 76.2 60 92.5 137
VBC02WH6XX1350NN 89 84.9 88.9 60 99 160
VBC02WH6XX1400NN 102 97.6 101.6 60 107 160
VBC02WH6XX1425NN 108 104 108 60 107 160
VBC02WH6XX1450NN 114 110 114 64 112 160
VBC02WH6XX1525NN 133 128 133 80 128 210
VBC02WH6XX1600NN 152 146.8 152.4 90 146 210
VBC02WH6XX1625NN 159 154 159 90 146 210
VBC02WH6XX1800NN 203 198 203.2 92 193 295
VBC02WH6XX2010NN 219 213 219 92 193 295

3A Clamp Economical Butterfly Valve (inch)

Model No Size A C D E
VBC02CH6XX1075NN 19 50.5 66 71.5 127
VBC02CH6XX1100NN 25 50.5 66 71.5 127
VBC02CH6XX1125NN 32 50.5 66 71.5 127
VBC02CH6XX1150NN 38 50.5 66/70 71.5 127
VBC02CH6XX1175NN 45 64 70 74 127
VBC02CH6XX1200NN 51 64 70/72 79 127
VBC02CH6XX1225NN 57 77.5 76 83 127
VBC02CH6XX1250NN 63 77.5 76 88.5 137
VBC02CH6XX1300NN 76 91 76 92.5 137
VBC02CH6XX1350NN 89 106 80 99 160
VBC02CH6XX1400NN 102 119 90 107 160
VBC02CH6XX1425NN 108 119 90 107 160
VBC02CH6XX1450NN 114 130 106 112 160
VBC02CH6XX1525NN 133 145 100 128 210
VBC02CH6XX1600NN 152 167 132/100 146 210
VBC02CH6XX1625NN 159 183 132 146 210
VBC02CH6XX1800NN 203 217 134 193 295
VBC02CH6XX2010NN 219 233.5 134 193 295



SMS Therad Economical Butterfly Valve (inch)

Model No Size A C D E
VBC02MH6XX1075NN 19 RD36X1/8 68 68 127
VBC02MH6XX1100NN 25 RD40X1/6 70 71.5 127
VBC02MH6XX1125NN 32 RD48X1/6 70 71.5 127
VBC02MH6XX1150NN 38 RD60X1/6 70 71.5 127
VBC02MH6XX1200NN 51 RD70X1/6 74 79 127
VBC02MH6XX1250NN 63 RD85X1/6 80 88 137
VBC02MH6XX1300NN 76 RD98X1/6 84 92 137
VBC02MH6XX1350NN 89 RD110X1/6 86 110 160
VBC02MH6XX1400NN 102 RD125X1/6 88 110 160

Have inquiries about sanitary sensors, pneumatic valves, food‑grade hoses, quotation, bulk orders or custom solutions for brewing & beverage processing? Reach out to us. Our team will respond within 24 working hours (UTC+8).

WhatsApp：+86 15163696638
Email：info@skeflows.com

Sensor Value

0.5"【316L】, 0.75"【316L】, 1"【316L】, 1.25"【316L】, 1.5"【316L】, 2"【316L】, 2.5"【316L】, 3"【316L】, 4"【316L】
