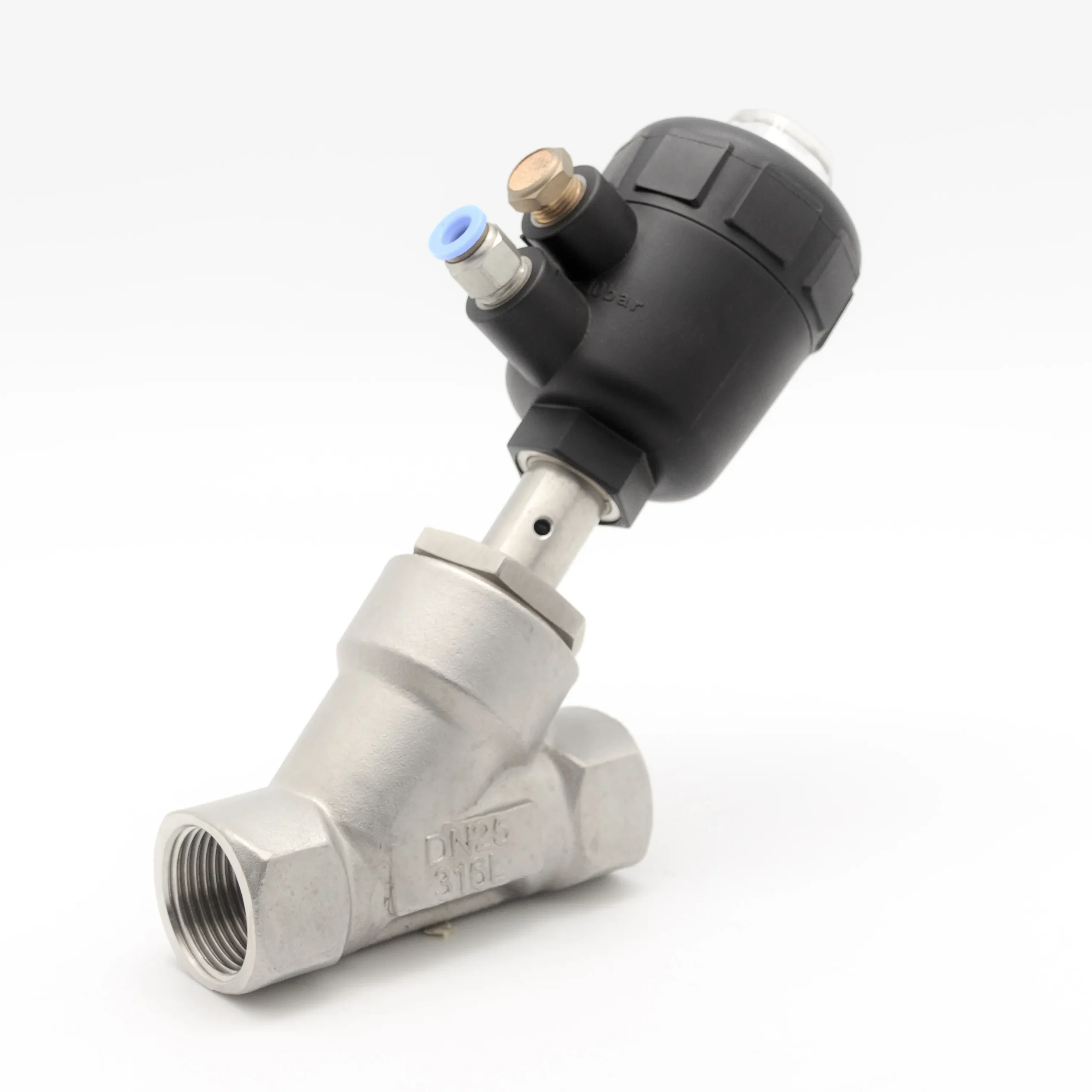

Sanitary SS304/SS316L Stainless Steel Regular Angle Seat Valve Female/Weld/Clamp/Flange Connection

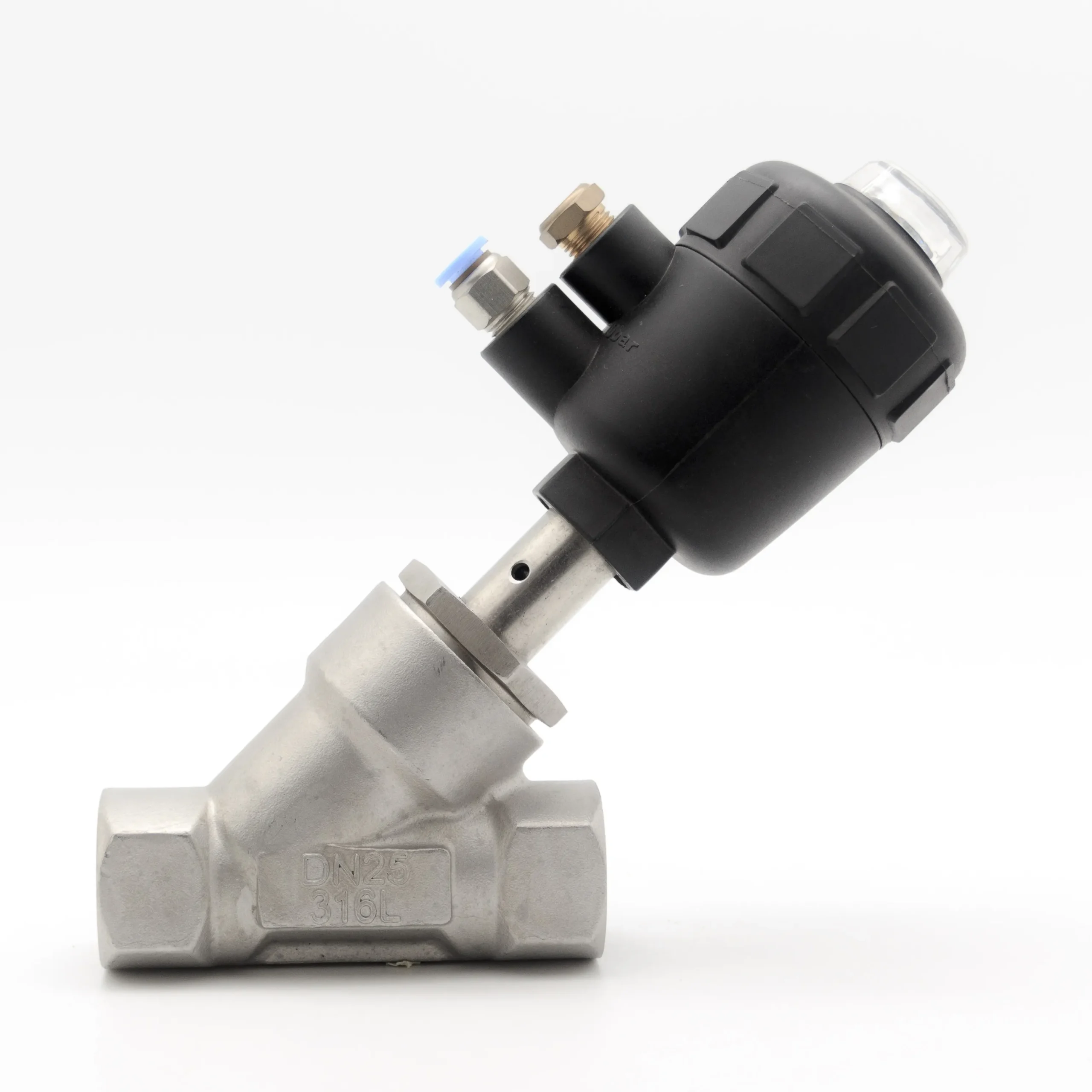

Sanitary SS304/SS316L Stainless Steel Regular Angle Seat Valve Female/Weld/Clamp/Flange Connection - Image 2
,

Sanitary SS304/SS316L Stainless Steel Regular Angle Seat Valve Female/Weld/Clamp/Flange Connection

+ Free Shipping

Design and Feature

  • High Flow Rate, Low Resistance, No Water-Hammer
  • Y-type Shape Enlarged The Flowing Section, Which Could Raise The Flux By 30% And Make Flow More Smooth
  • High Cycle Life Compared To Ball Valves
  • Which Help The Stem Adjust And Lubricate Itself Automatically

You can contact our customer service, tell us how many you need and give you a price check.

SKU: N/A Categories: ,

Technical Data

Female Connection
Model No Size D L A H L1 Actuator
VGN44PC451050NN DN15 1/2” 172 86 137 64 ⌀50
VGN44PC451075NN DN20 3/4” 178 95 145 64 ⌀50
VGN44PC451100NN DN25 1” 210 105 165 64/80 ⌀50/⌀63
VGN44PC451125NN DN32 1 1/4” 220 120 180 80 ⌀63
VGN44PC451150NN DN40 1 1/2” 228 130 190 80 ⌀63
VGN44PC451200NN DN50 2” 268 150 245 100 ⌀80
VGN44PC451250NN DN65 2 1/2” 282 185 272 100 ⌀80
VGN44PC451300NN DN80 3” 362 220 302 126 ⌀100

Weld Connection

Model No Size C D L A H L1 Actuator
VGN11PC452020NN DN20 19 22 284 120 145 64 ⌀50
VGN11PC452025NN DN25 25 28 224 150 165 64/80 ⌀50/⌀63
VGN11PC452032NN DN32 31 34 250 155 180 64 ⌀50
VGN11PC452040NN DN40 37 40 257 170 190 64 ⌀50
VGN11PC452050NN DN50 49 52 290 190 245 80 ⌀63
VGN11PC451075NN 3/4” 15.75 19.05 184 120 137 64 ⌀50
VGN11PC451100NN 1” 22.1 25.4 224 150 165 64/80 ⌀50/⌀63
VGN11PC451125NN 1 1/4” 28.5 31.8 250 155 182 64 ⌀50
VGN11PC451150NN 1 1/2” 34.8 38.1 257 170 186 64 ⌀50
VGN11PC451200NN 2” 46.5 64 290 190 219 80 ⌀63

Clamp Connection

Model No Size C D L A H L1 Actuator
VGN22PC452020NN DN20 19 50.5 284 120 143 64 ⌀50
VGN22PC452025NN DN25 25 50.5 224 150 182 64/80 ⌀50/⌀63
VGN22PC452032NN DN32 31 50.5 250 155 182 64 ⌀50
VGN22PC452040NN DN40 37 50.5 257 170 186 64 ⌀50
VGN22PC452050NN DN50 49 64 290 190 219 80 ⌀63
VGN22PC451075NN 3/4” 15.75 50.5 184 120 137 64 ⌀50
VGN22PC451100NN 1” 22.1 50.5 224 150 182 64/80 ⌀50/⌀63
VGN22PC451125NN 1 1/4” 28.5 50.5 250 155 182 64 ⌀50
VGN22PC451150NN 1 1/2” 34.8 50.5 257 170 186 64 ⌀50
VGN22PC451200NN 2” 46.5 64 290 190 219 80 ⌀63

Flange Connection

Model No Size D D1 D2 D3 D4 L A H L1
VGN55PC452020NN DN20 105 75 50 19 4-⌀14 185 130 145 64
VGN55PC452025NN DN25 115 85 60 25 4-⌀14 210 140 173 64/80
VGN55PC452032NN DN32 135 100 70 31 4-⌀18 240 150 210 64
VGN55PC452040NN DN40 145 110 80 37 4-⌀18 245 180 260 64
VGN55PC452050NN DN50 160 125 92 49 4-⌀18 295 195 300 80
VGN55PC451075NN 3/4” 95 65 40 15.75 4-⌀14 180 120 137 64
VGN55PC451100NN 1” 115 85 60 22.1 4-⌀14 210 140 173 64/80
VGN55PC451125NN 1 1/4” 135 100 70 28.5 4-⌀18 240 150 210 64
VGN55PC451150NN 1 1/2” 145 110 80 34.8 4-⌀18 245 180 260 64
VGN55PC451200NN 2” 160 125 92 47.5 4-⌀18 295 195 300 80

Have inquiries about sanitary sensors, pneumatic valves, food‑grade hoses, quotation, bulk orders or custom solutions for brewing & beverage processing? Reach out to us. Our team will respond within 24 working hours (UTC+8).

WhatsApp：+86 15163696638
Email：info@skeflows.com

DN

DN15, DN20, DN25, DN50, DN40, DN32, DN65, DN80
