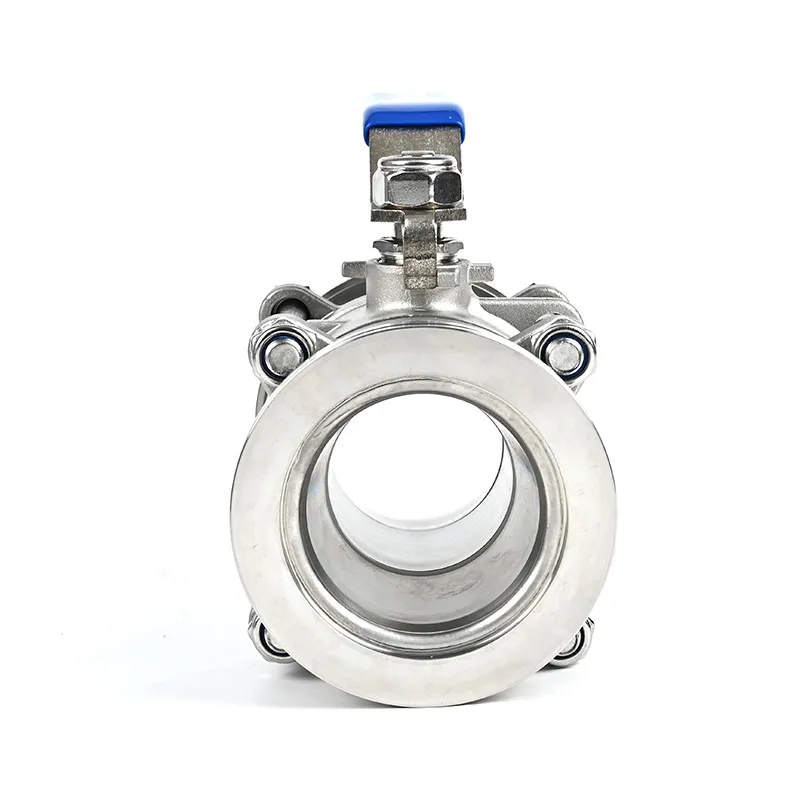

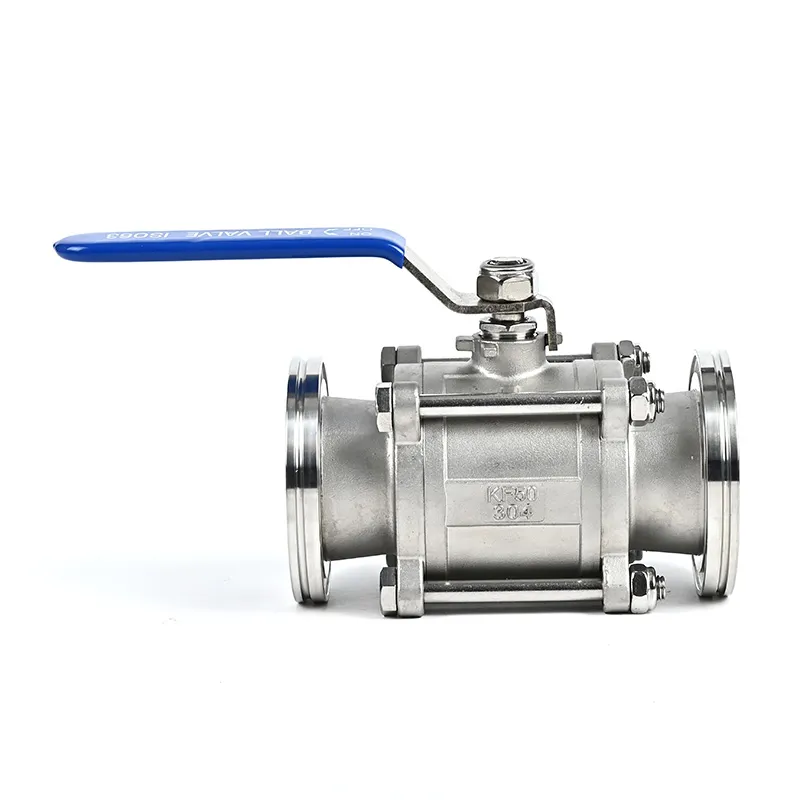

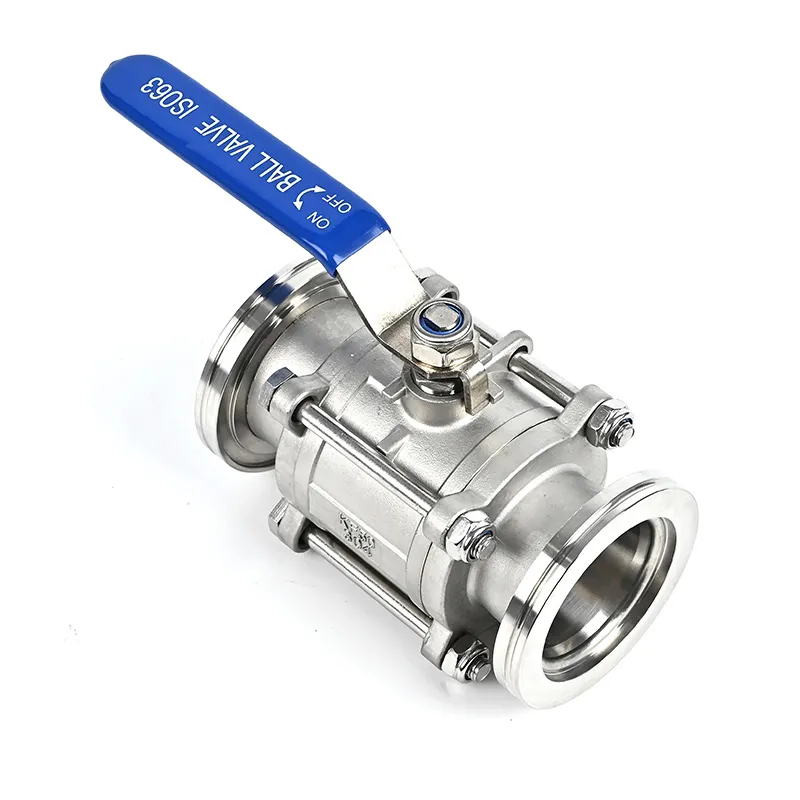

SS304 SS316L High Vacuum 3PC PTFE Ball Valve ISO63-ISO160 Stainless Steel ISO/NW Vacuum Hole Hrinkage Three-piece Ball Valve for Semiconductor

+ Free Shipping

Design and Feature:

  •  Valve Body : sS304/SS316L
  • Gate seal : PTFE packing
  • Vacuum Range : 1×10-6 Torr
  • Option with ISo nounting pad for pneumatic actuator

You can contact our customer service, tell us how many you need and give you a price check.

SKU: N/A Categories: ,

VFK02 ISO 3-piece Flange Ball Valve Diameter

                 Size     L/mm     d/mm     D/mm     H/mm     W/mm
ISO63 194 57 95 135 235
ISO80 242 72 110 145 235
ISO100 304 95 130 165 240



VFK02 ISO 3-piece Flange Ball Valve Hole Shrinkage

                 Size     A/mm     B/mm     C/mm     L/mm
ISO63 95 70 50 167
ISO80 110 83 65 203
ISO100 130 102 78 229

Have inquiries about sanitary sensors, pneumatic valves, food‑grade hoses, quotation, bulk orders or custom solutions for brewing & beverage processing? Reach out to us. Our team will respond within 24 working hours (UTC+8).

WhatsApp：+86 15163696638
Email：info@skeflows.com

Size

ISO100, ISO160, ISO63, ISO80
