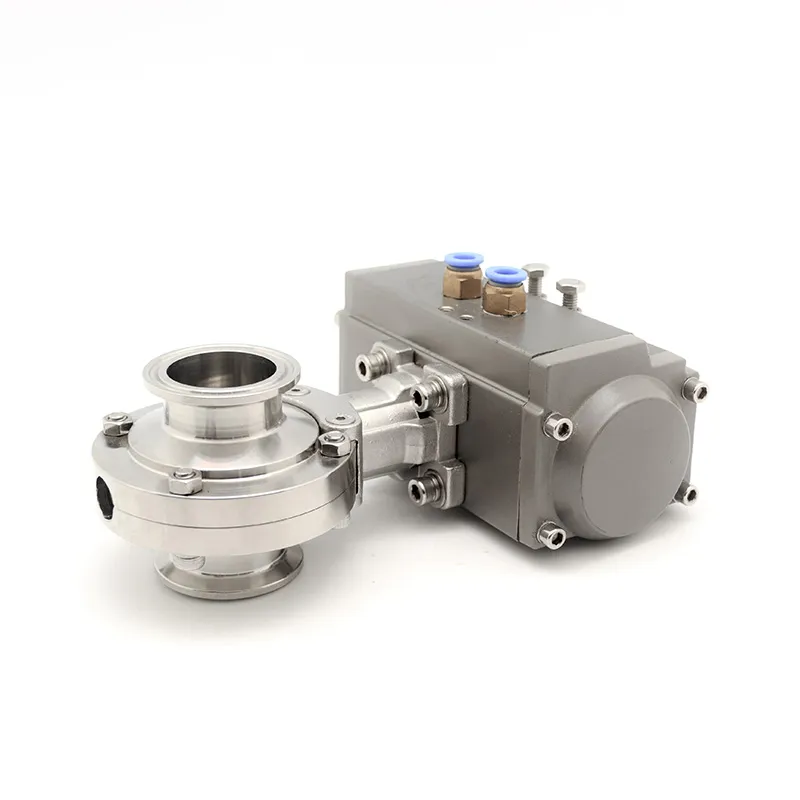

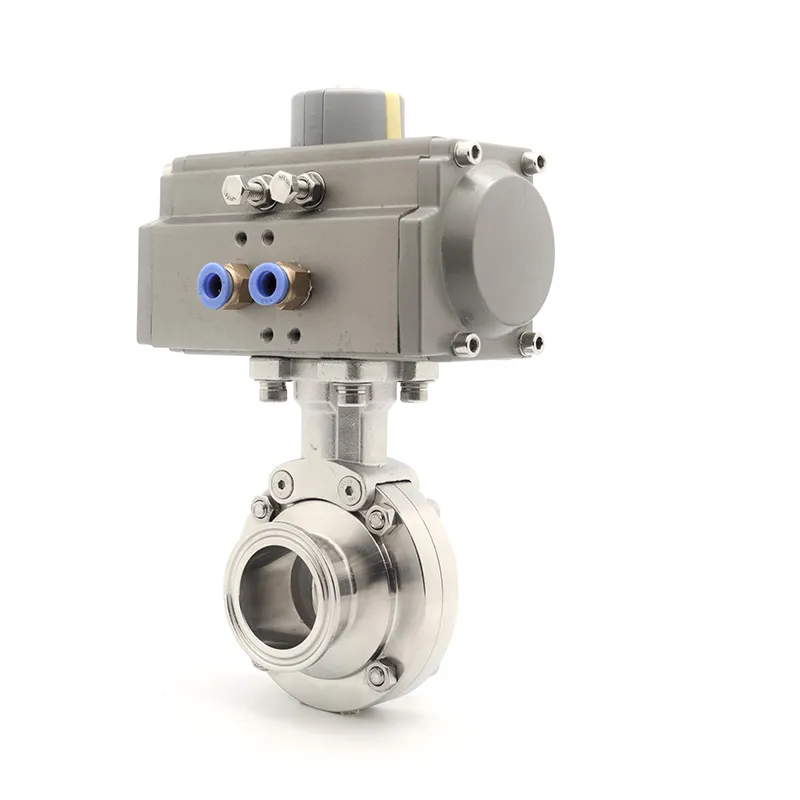

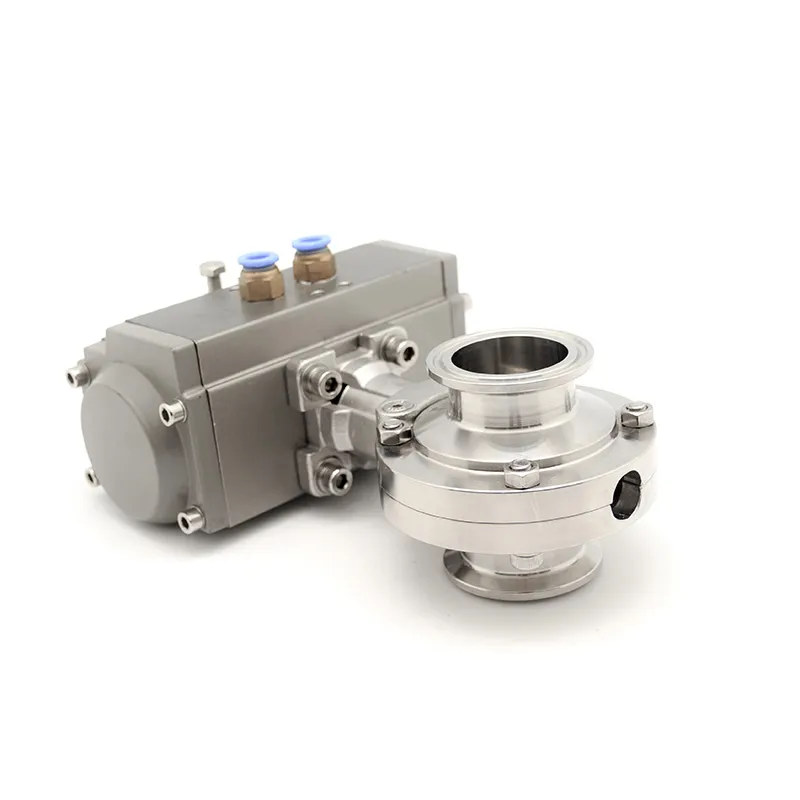

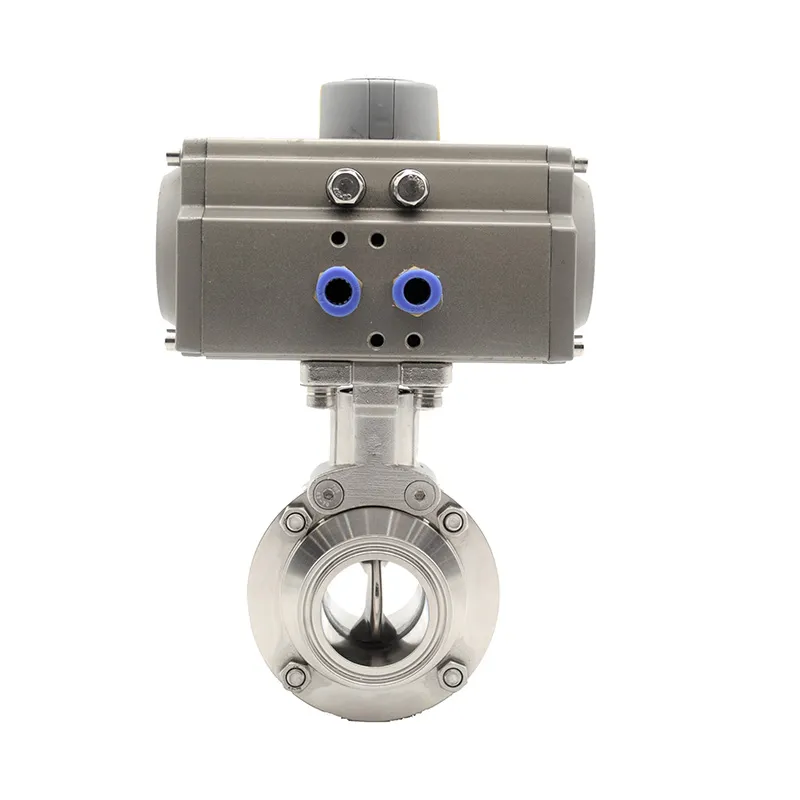

SS304/SS316L Sanitary Butterfly Valve With Horizontal Actuator Stainless Steel Weld/Clamp pipe systems for food

Technical Specification

Weld Manual Butterfly Valve

	Model No	Size	D1	D	L	KxK
	VBN01WH1XX1050NN	1/2″	12.7	78	50	8×8
	VBN01WH1XX1075NN	3/4″	19	78	50	8×8
	VBN01WH1XX1100NN	1“”	25.4	78	50	8×8
	VBN01WH1XX1125NN	1 1/4″	31.8	78	50	8×8
	VBN01WH1XX1150NN	1 1/2″	38.1	78	50	8×8
	VBN01WH1XX1200NN	2″	50.8	93	52	10×10
	VBN01WH1XX1250NN	2 1/2″	63.5	115	56	10×10
	VBN01WH1XX1300NN	3″	76.2	128	56	10×10
	VBN01WH1XX1350NN	3 1/2″	89	139	60	11×11
	VBN01WH1XX1400NN	4″	102	154	64	11×11
	VBN01WH1XX1500NN	5″	127	185	80	14×14
	VBN01WH1XX1600NN	6″	152.4	215	90	14×14
	VBN01WH1XX1800NN	8″	203.2	285	90	14X14
	VBN01WH1XX2010NN	DN10	12/13	78	50	8×8
	VBN01WH1XX2015NN	DN15	18/19	78	50	8×8
	VBN01WH1XX2020NN	DN20	22/23	78	50	8×8
	VBN01WH1XX2025NN	DN25	28/29	78	50	8×8
	VBN01WH1XX2032NN	DN32	34/35	78	50	8×8
	VBN01WH1XX2040NN	DN40	40/41	90	50	8×8
	VBN01WH1XX2050NN	DN50	52/53	106	52	10×10
	VBN01WH1XX2065NN	DN65	70	124	56	10×10
	VBN01WH1XX2080NN	DN80	85	139	60	11×11
	VBN01WH1XX2100NN	DN100	104	159	64	11×11
	VBN01WH1XX2125NN	DN125	129	185	80	14×14
	VBN01WH1XX2150NN	DN150	154	215	90	14×14
	VBN01WH1XX2200NN	DN200	204	285	90	14×14

Clamp Manual Butterfly Valve

	Model No	Size	D1	D	L	KxK
	VBN01CH1XX1050NN	1/2″	25.4	78	66	8×8
	VBN01CH1XX1075NN	3/4″	25.4	78	66	8×8
	VBN01CH1XX1100NN	1″	50.5	78	66	8×8
	VBN01CH1XX1125NN	1 1/4″	50.5	78	66	8×8
	VBN01CH1XX1150NN	1 1/2″	50.5	78	70	8×8
	VBN01CH1XX1200NN	2″	64	93	76	10×10
	VBN01CH1XX1250NN	2 1/2″	77.5	15	80	10×10
	VBN01CH1XX1300NN	3″	91	128	84	10×10
	VBN01CH1XX1350NN	3 1/2″	106	139	86	11×11
	VBN01CH1XX1400NN	4″	119	154	104	11×11
	VBN01CH1XX1500NN	5″	144.5	185	122	14×14
	VBN01CH1XX1600NN	6″	167	215	146	14×14
	VBN01CH1XX1800NN	8″	217.4	285	166.8	14X14
	VBN01CH1XX2010NN	DN10	34	78	66	8×8
	VBN01CH1XX2015NN	DN15	34	78	66	8×8
	VBN01CH1XX2020NN	DN20	34	78	66	8×8
	VBN01CH1XX2025NN	DN25	50.5	78	66	8×8
	VBN01CH1XX2032NN	DN32	50.5	78	66	8×8
	VBN01CH1XX2040NN	DN40	50.5	90	70	8×8
	VBN01CH1XX2050NN	DN50	64	106	76	10×10
	VBN01CH1XX2065NN	DN65	91	124	80	10×10
	VBN01CH1XX2080NN	DN80	106	139	100	11×11
	VBN01CH1XX2100NN	DN100	119	159	104	11×11
	VBN01CH1XX2125NN	DN125	144.5	185	136	14×14
	VBN01CH1XX2150NN	DN150	167	215	146	14×14
	VBN01CH1XX2200NN	DN200	217.4	285	146	14×14

DIN Thread Manual Butterfly Valve

	Model No	Size	Dn	D	L	G	KxK
	VBN01MH1XX2010NN	DN10	10	78	66	RD28x1/8	8×8
	VBN01MH1XX2015NN	DN15	15	78	66	RD34x1/8	8×8
	VBN01MH1XX2020NN	DN20	19	78	66	RD44x1/6	8×8
	VBN01MH1XX2025NN	DN25	25	78	66	RD52x1/6	8×8
	VBN01MH1XX2032NN	DN32	31	86	70	RD58x1/6	8×8
	VBN01MH1XX2040NN	DN40	37	90	74	RD65x1/6	8×8
	VBN01MH1XX2050NN	DN50	49	106	76	RD78x1/6	10×10
	VBN01MH1XX2065NN	DN65	66	124	80	RD95x1/6	10×10
	VBN01MH1XX2080NN	DN80	81	139	100	RD110x1/4	11×11
	VBN01MH1XX2100NN	DN100	100	159	104	RD130x1/4	11×11
	VBN01MH1XX2125NN	DN125	125	185	136	RD160x1/4	14×14
	VBN01MH1XX21	DN150	150	215	146	RD190x1/4	14×14
