Technical Specification
Weld Diaphragm Valve VDM
 |
Model No | Size | L | d | s | AxB |
| VDM11W1661025NN | 1/4” | 72 | 6.35 | 0.9 | 22×22 | |
| VDM11W1661038NN | 3/8” | 72 | 9.53 | 0.9 | 22×22 | |
| VDM11W1661050NN | 1/2” | 72 | 12.7 | 1.65 | 22×22 | |
| VDM11W1662006NN | DN6 | 72 | 8 | 1 | 22×22 | |
| VDM11W1662008NN | DN8 | 72 | 10 | 1 | 22×22 | |
| VDM11W1662010NN | DN10 | 72 | 12 | 1 | 22×22 |

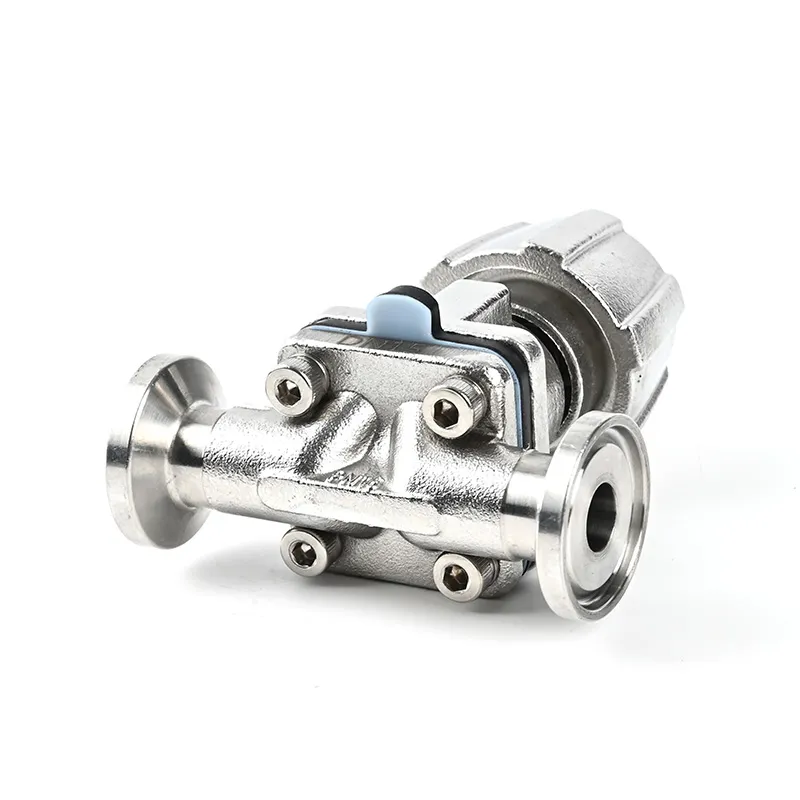

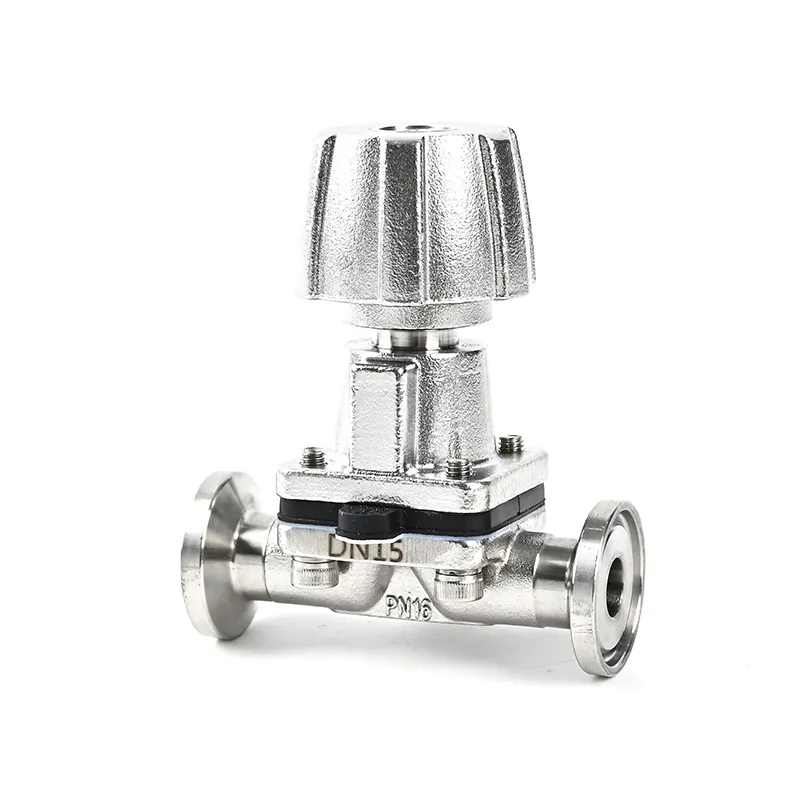

Clamp Diaphragm Valve VDM
 |
Model No | Size | L | d1 | d3 | AxB |
| VDM22W1661025NN | 1/4” | 72 | 4.57 | 25.2 | 22×22 | |
| VDM22W1661038NN | 3/8” | 72 | 7.75 | 25.2 | 22×22 | |
| VDM22W1661050NN | 1/2” | 72 | 9.4 | 25.2 | 22×22 | |
| VDM22W1662006NN | DN6 | 72 | 6 | 34 | 22×22 | |
| VDM22W1662008NN | DN8 | 72 | 8 | 34 | 22×22 | |
| VDM22W1662010NN | DN10 | 72 | 10 | 34 | 22×22 |
