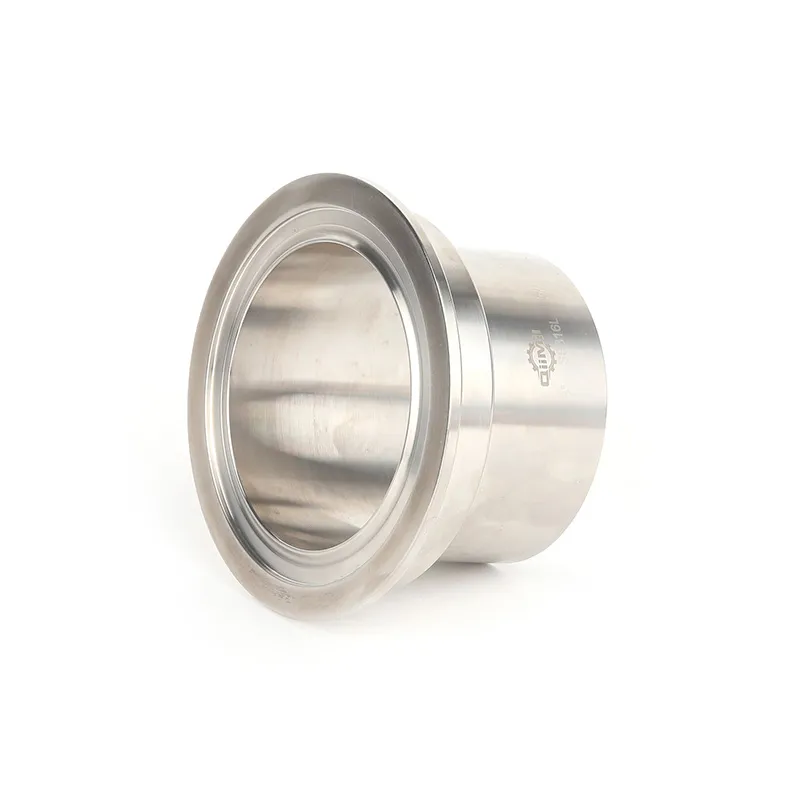

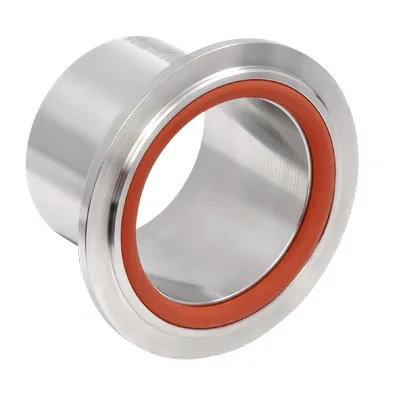

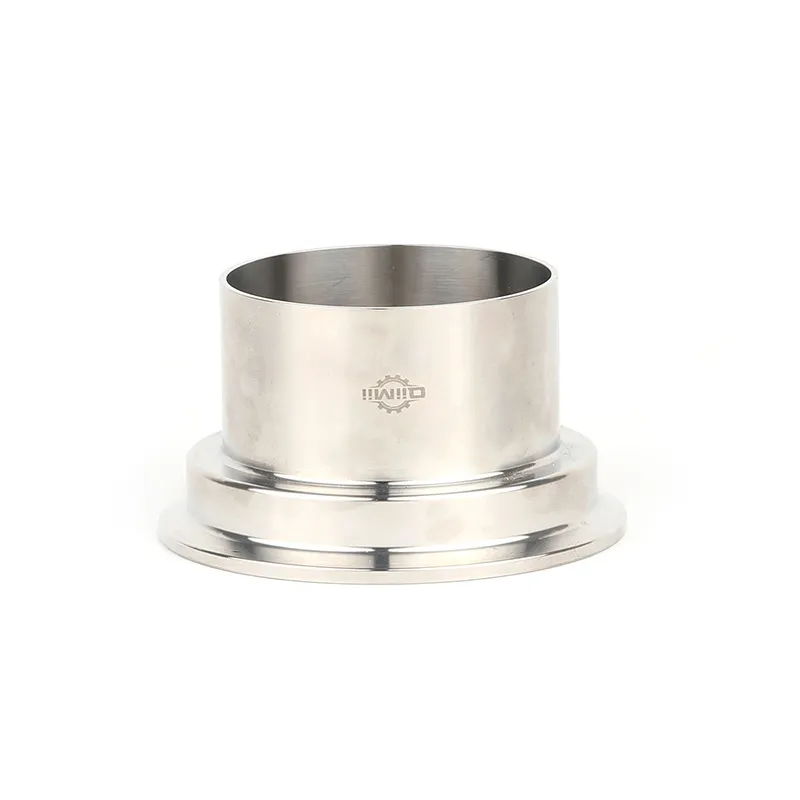

DIN 11864-1 Fittings – Aseptic Screwed Union DIN Welding Liner 3A/ISO1127 SS316L Stainless Steel Form A

Welding Liner DIN 11864-1 Form A (DIN)

	Model	Size	A/mm	B/mm	C/mm	L/mm	N.W./g
	FLA1420106S2	DN10	10	13	21.9	39	30
	FLA1420156S2	DN15	16	19	27.9	39	40
	FLA1420206S2	DN20	20	23	35.9	38	60
	FLA1420256S2	DN25	26	29	42.9	40	90
	FLA1420326S2	DN32	32	35	48.9	47	120
	FLA1420406S2	DN40	38	41	54.9	47	140
	FLA1420506S2	DN50	50	53	66.9	48	190
	FLA1420656S1	DN65	66	70	84.9	61	350
	FLA1420806S1	DN80	81	85	98.9	61	400
	FLA1421006S1	DN100	100	104	118.9	66	580

Welding  Liner DIN 11864-1 Form A (3A)

	Model	Size	A/mm	B/mm	C/mm	L/mm	N.W./g
	FLA1410506	1/2″	9.4	12.7	21.9	39	100
	FLA1410756	3/4″	15.75	19.05	27.9	39	110
	FLA1411006	1″	22.1	25.4	42.9	40	100
	FLA1411506	11/2″	34.8	38.1	54.9	46.5	150
	FLA1412006	2″	47.5	50.8	66.9	47.5	210
	FLA1412506	21/2″	60.2	63.5	84.9	63	360
	FLA1413006	3″	72.9	76.2	98.9	61	450
	FLA1414006	4″	97.38	101.6	118.9	65	620

Welding Liner  DIN 11864-1 Form A (ISO 1127)

	Model	Size	A/mm	B/mm	C/mm	L/mm	N.W./g
	FLA1470256	1/4″	10.3	13.5	21.9	39	30
	FLA1470386	3/8″	14	17.2	27.9	39	40
	FLA1470506	1/2″	18.1	21.3	35.9	40	60
	FLA1470756	3/4″	23.7	26.9	42.9	41	100
	FLA1471006	1″	29.7	33.7	48.9	47	140
	FLA1471256	11/4″	38.4	42.4	54.9	47	160
	FLA1471506	11/2″	44.3	48.3	66.9	48	240
	FLA1472006	2″	56.3	60.3	84.9	62	410
	FLA1472506	21/2″	72.1	76.1	98.9	61	510
	FLA1473006	3″	84.3	88.9	118.9	68	850
