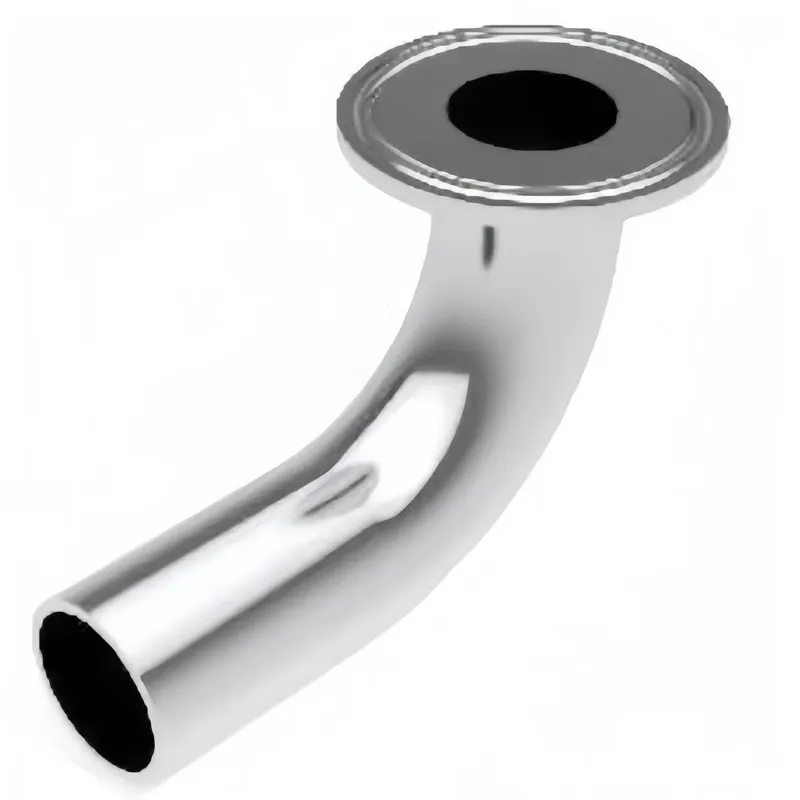

DT-4.1.1-2 Clamp/Weld 90° Elbow(DT-12) BPE ASME Fitting 1/4"-6" Sanitary 90 Degree Elbows Food SS316L Stainless Steel
,

DT-4.1.1-2 Clamp/Weld 90° Elbow(DT-12) BPE ASME Fitting 1/4″-6″ Sanitary 90 Degree Elbows Food SS316L Stainless Steel

+ Free Shipping

Design And Deatures

– Strict dimensional & wall‑thickness tolerances per ASME BPE tables, ensures precise orbital welding & consistent fitting performance
– Wide size range: 1/4″‑6″, covers most high‑purity process piping requirements
– Smooth crevice‑free internal geometry, validatable for clean‑in‑place & steam‑in‑place sterilization

You can contact our customer service, tell us how many you need and give you a price check.

SKU: N/A Categories: ,

Technical Specification

Surface Finish

BPE Code Mechanicall Polished BPE Code Mechanicall Polished & Electroplished
Ra Average Ra Average
uin um uim un
SF0 NO Polished NO Polished SF4 15 0.38
SF1 20 0.51 SF5 20 0.51
SF2 25 0.64 SF6 25 0.64
SF3 30 0.76

Tube Dimension

Size OD Tube Wall Thickness
Inch mm Inch mm
1/4″ 0.25 6.35 0.035 0.89
3/8″ 0.375 9.53 0.035 0.89
1/2″ 0.5 12.7 0.065 1.65
3/4″ 0.75 19.05 0.065 1.65
1″ 1 25.4 0.065 1.65
1.5″ 1 38.1 0.065 1.65
2″ 2 50.8 0.065 1.65
2.5″ 2.5 63.5 0.065 1.65
3″ 3 76.2 0.065 1.65
4″ 4 101.6 0.083 2.1
6″ 6 152.4 0.109 2.77

Dimension & Tolerance

Size OD Tube Wall Thickness
mm Mechanically Polished Electro Polished
1/4″ ±0.13 +0.13/-0.10 +0.08/-0.15
3/8″ ±0.13 +0.13/-0.10 +0.08/-0.15
1/2″ ±0.13 +0.13/-0.20 +0.13/-0.25
3/4″ ±0.13 +0.13/-0.20 +0.13/-0.25
1″ ±0.13 +0.13/-0.20 +0.13/-0.25
1.5″ ±0.2 +0.13/-0.20 +0.13/-0.25
2″ ±0.2 +0.13/-0.20 +0.13/-0.25
2.5″ ±0.25 +0.13/-0.20 +0.13/-0.25
3″ ±0.25 +0.13/-0.20 +0.13/-0.25
4″ ±0.38 +0.20/-0.25 +0.20/-0.30
6″ ±0.76 +0.38/-0.38 +0.38/-0.43

Material

Material C M N Cr Ni Mo S
SS3163/316L 0.003 2 0.1 16.0-18.0 10.0-14.0 2.0-3.0 0.005-0.007
EN1.4404 0.003 2 0.1 16.0-18.5 10.0-14.5 2.0-2.5 0.005-0.007

DT-4.1.1-2 Clamp/Weld 90° Elbow(DT-12)

Model No Size D/mm L/mm L1/mm T/mm N.W/g.
FEA02B025 1/4″ 6.35 41.28 66.68 0.89
FEA02B038 3/8″ 9.53 41.28 66.68 0.89
FEA02B050 1/2″ 12.7 41.28 76.2 1.65
FEA02B075 3/4″ 19.05 41.28 76.2 1.65
FEA02B100 1″ 25.4 50.8 76.2 1.65
FEA02B150 11/2″ 38.1 69.85 95.25 1.65
FEA02B200 2″ 50.8 88.9 120.65 1.65
FEA02B250 21/2″ 63.5 107.95 139.7 1.65
FEA02B300 3″ 76.2 127 158.75 1.65
FEA02B400 4″ 101.6 168.28 203.2 2.11
FEA02B600 6″ 152.4 266.7 292.1 2.77
